Description
Features & benefits
Better-tasting water. Clear worktop.
HydroView+ hides the purifier below the sink, gives RO drinking water its own faucet and keeps a separate filtered stream for rinsing.
Keep your worktop clear.
The purifier sits inside the cabinet, leaving only its dedicated faucet on the worktop. Installation needs an inlet, RO drain, power and room to change both cartridges.
RO drinking water from its own tap.
Particle filtration, carbon, reverse osmosis and a final carbon stage work together below the sink before water reaches the faucet.
Drinking water and rinse water, each with its own lever.
One lever supplies RO drinking water; the other supplies composite-filtered water for rinsing fruit and vegetables.
Refill at the sink
Your own RO tap. Your own reusable bottle.
The dedicated HydroView+ faucet fills glasses, carafes and reusable bottles while reducing the bottled drinking water a household needs to buy, carry and store.
RO drinking water has its own outlet, separate from the composite-filtered rinse-water lever.
Keep a reusable bottle or carafe ready and fill it directly at the sink.
Reduce the need to bring home and make room for repeat cases of bottled drinking water.
See it working · HydroView+
See the difference at the faucet.
HydroView+ shows source and filtered-water TDS together, with filter status and rinse controls on the display faucet.
Better-tasting water, filtered below the sink.
Particle and carbon stages improve the water before the RO membrane and final carbon stage.
Compare source and filtered water.
The display shows source and RO-output readings together where you pour the water.
Know when each filter is due.
HydroView+ tracks the CF and RO cartridges separately and keeps their status visible at the faucet.
A clean result across bacteria, toxic metals and pesticides.
SGS Malaysia tested water from HydroView+ (VA10S) across three important contaminant groups. Every reported target came back non-detect: total coliforms and E. coli; arsenic, lead and mercury; and the full listed pesticide panel. This goes well beyond a taste check or TDS reading—it is independent laboratory evidence covering microbiological and chemical water quality.
1 SGS Malaysia test report HNSA/260580372-AH86292, reported 7 May 2026. Results apply to the HydroView+ (VA10S) sample submitted for analysis. “Non-detect” means below each test method’s stated reporting limit.
Official product film & gallery
See HydroView+ in motion.
Watch the under-sink purifier and display faucet at work, then inspect the appliance, faucet, filters and controls.
Official Velta film
HydroView+ and Hhuhu product film
The local film shows HydroView+ supplying low-TDS RO water through its display faucet and pairing with a compatible Hhuhu appliance.
HydroView+ product views
Dual-outlet faucet
One faucet. Two kinds of filtered water.
The right lever supplies RO drinking water and the left supplies composite-filtered rinse water.
Dispenses purified water for drinking.
Dispenses filtered water for washing vegetables and fruit.
Installation
Plan the cabinet and faucet.
The cabinet must fit the purifier, both cartridges, existing services and future maintenance, together with a suitable faucet, inlet, reject-water drain and power arrangement.
Cabinet
The body is 165 × 381 × 435 mm. Usable space must also account for the trap, valves, bins and stored items, plus cartridge-removal clearance.
Water + drain
Connect to a suitable cold-water line and route the RO reject-water stream correctly to the drain, with isolation and tubing kept serviceable.
Faucet + power
Allow for the dedicated faucet opening and a protected power arrangement suitable for the 90 W appliance.
A clear cabinet photo, complete measurements and the proposed faucet location turn the product dimensions into a confident installation plan.
Tankless direct flow
No purified-water storage tank. 2.1 L/min flow.
The 800 GPD direct-flow system filters water on demand, keeping the cabinet free from a separate purified-water storage tank.
Cold-water inlet
Source range: 1–4 bar and 5–45°C.
CF + RO paths
The two-cartridge body filters on demand without a pressure tank.
Faucet + drain
Selected water goes to the faucet; the separated stream goes to drain.
Filtration
Five filtration layers.
Two particle filters, carbon pre-treatment, reverse osmosis and post-carbon filtration work together before water reaches the faucet.
Folding PP cotton
The first particle pre-filtration layer.
Sintered carbon
Activated carbon before the RO membrane.
PP cotton
A further particle layer before the membrane.
RO membrane
The manufacturer specifies a nominal 0.0001 µm membrane.
Post-bacteriostatic carbon
The manufacturer’s named final carbon stage before drinking.
Display & diagnostics
Device readings, filter status and alerts.
HydroView+ keeps TDS readings, cartridge status, rinse controls and fault alerts visible at the faucet.
Inlet and outlet TDS
The display compares inlet and outlet TDS readings at the faucet.
12-hour auto-flush
The system flushes automatically every 12 hours when unused.
Filter-life memory
The unit records cartridge use and status through a power interruption.
Automatic screen sleep
The display switches off when idle and wakes with a keypress or water use.
Fault alerts
Visual and audio indications flag filter expiry, extended flow and other appliance errors.
Technician Bluetooth
Built-in Bluetooth is reserved for technician servicing and is not a household app.
Filter replacement
Two cartridges, two replacement schedules.
Use the replacement schedule, appliance alert and actual water quality together. Replace earlier when performance or status requires it.
Every 8–12 months
Replace sooner for poor source quality, heavy use, rising TDS, reduced output or an appliance alert.
Every 24 months
Replace sooner if the status indicator or diagnosed water performance requires it.
Replacement filters and support
Contact Velta Malaysia for current replacement-cartridge availability, pricing and service options.
Inside the cabinet and at the faucet
Inside HydroView+.
See the under-sink purifier, five filtration layers, display faucet, replaceable cartridges and compatible low-TDS handoff.
HydroView+ product animation
See the under-sink body, display faucet and water flow in motion.
Five filtration layers
Two particle layers, sintered carbon, the RO membrane and post-carbon make up the five stages.
Water quality and filter life at the faucet
The display shows inlet and outlet TDS, filter status, rinse and reset controls, and fault alerts.
RO source water for Hhuhu
HydroView+ can supply low-TDS RO source water to a separate compatible Hhuhu setup, subject to the measured output and installation plan.
Specifications
HydroView+ specifications.
Check the flow, filtration, dimensions, power and installation requirements against the intended cabinet and faucet position.
| Water outputs | RO drinking water · composite-filtered rinse water |
|---|---|
| Temperature | Ambient only |
| Flow | 2.1 L/min |
| Capacity | 800 GPD · manufacturer specification |
| Storage / pressure tank | None |
| Filter stages | PP · carbon · PP · RO · post-carbon |
| Nominal RO scale | 0.0001 µm · manufacturer specification |
| Source connection | Cold-water line |
| Source pressure | 1–4 bar |
| Source temperature | 5–45°C |
| Power usage | 90 W |
| Voltage | 110 / 220 V · confirm the Malaysia unit and power arrangement at installation |
| Dimensions (W × D × H) | 165 × 381 × 435 mm |
| Product weight | 7.8 kg |
| Faucet | Dedicated dual-outlet display faucet |
| Finish | Graphite body · chrome faucet |
| Filter replacement | CF every 8–12 months · RO every 24 months · replace sooner when required |
| Malaysia warranty | 12 months standard + 12 months extended; exclusions and assessment apply |
Compare alternatives
Clear counter, temperature control or flexible placement?
Choose by water modes, cabinet and counter space, installation routes, filters, ownership work and local service.
Choose it for an ambient filtered-water faucet and clear worktop.
The purifier stays below the sink, but permanent cabinet, faucet, power and drain work must fit.
Choose HydroView+ ↑Choose it when hot and cold matter more than a clear counter.
A 180 mm-wide connected countertop purifier with hot, cold and ambient outputs.

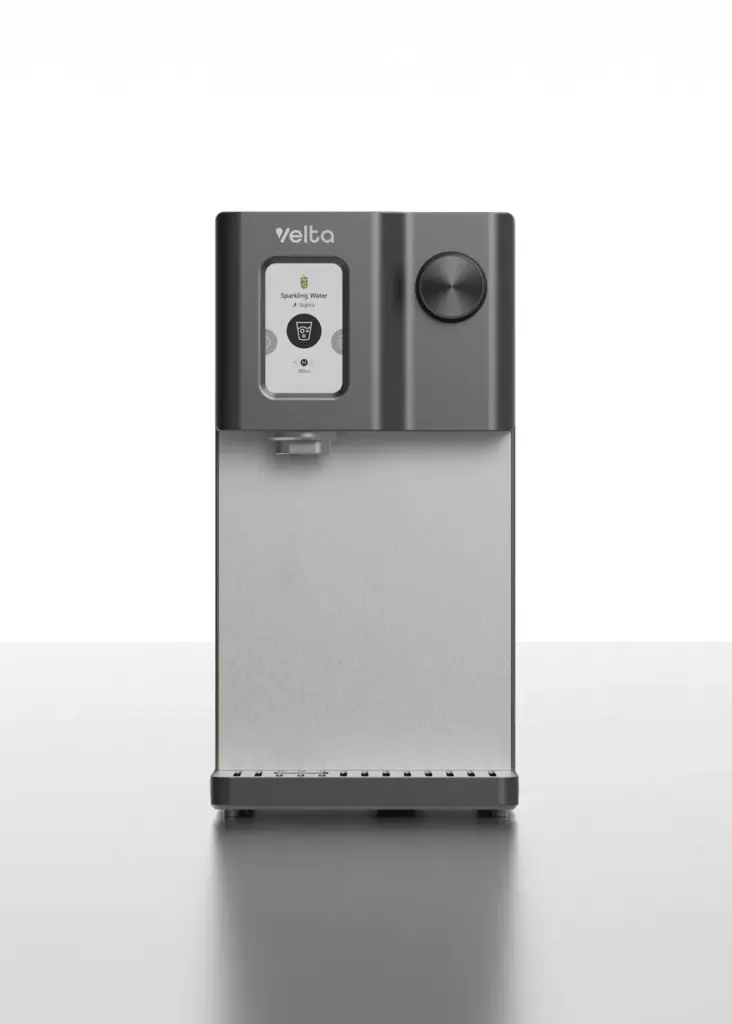

View HydroForm+ →Choose it for sparkling plus temperature dispensing.
Adds sparkling, hot and cold water and a refillable option, but needs 508 mm of counter depth.
View HydroSpark+ →Visible RO performance
Why every Velta purifier includes TDS monitoring.
Is your water filter working right now? Most families can hear the appliance and taste the water, but neither tells them how strongly the RO membrane is reducing dissolved material.
Illustrative reading—your inlet and outlet values will vary.
Assumption is not measurement.
Incoming TDS can change with the water source, building storage, internal plumbing, temperature and season. The same purifier can therefore receive very different water from one home to another.
A visible performance trend.
A consistently lower RO reading shows that the membrane is still reducing the overall dissolved load. A sharp or lasting change gives you a reason to check the source water, filter status and appliance—instead of waiting for taste to change.
One glance. A useful daily check. TDS does not identify PFAS, arsenic, microorganisms or any individual contaminant, so it is not a laboratory report. What it does provide is something most filters never show: immediate evidence that dissolved-solids reduction is happening.
Frequently asked questions
HydroView+ FAQs.
Practical answers about installation, faucet outputs, filters, TDS, service and warranty.
01Does HydroView+ provide hot or cold water?
+
No. HydroView+ provides ambient water. HydroForm+ adds hot and cold water, while HydroSpark+ also adds sparkling water.
02What comes from each faucet lever?
+
The right-side lever dispenses RO drinking water. The left-side lever provides composite-filtered water for rinsing vegetables and fruit, giving each side of the faucet a clear role.
03Will HydroView+ fit under my sink?
+
The body is 165 mm wide, 381 mm deep and 435 mm high, but a dimension check alone is not enough. The cabinet must also accommodate the trap, valves, inlet and drain tubing, power, isolation and clearance to remove both cartridges. Share clear photos and measurements before purchase.
04Does it need a new faucet hole?
+
HydroView+ uses its own dual-outlet faucet. Whether an existing opening can be reused depends on your mixer, sink and worktop. The faucet position and any drilling need to be checked before installation.
05What does tankless mean here?
+
The unit filters on demand without a pressure or purified-water storage tank. It uses a connected inlet, reject-water drain and power supply below the sink, with a rated flow of 2.1 L/min.
06How often are the HydroView+ filters replaced?
+
Replace the CF composite filter every 8–12 months and the RO membrane every 24 months. Replace sooner if water quality is poor, use is heavy, output falls, TDS rises or the appliance alerts you.
07What do the HydroView+ TDS readings show?
+
The faucet display shows inlet and outlet TDS readings together, along with separate CF and RO filter status. TDS is a useful trend and treatment reading, but it does not identify every individual substance or certify safety by itself.
08Why use RO with treated Malaysian water?
+
A household may choose point-of-use RO for dissolved matter, taste preferences or uncertainty after public treatment, such as private storage tanks and internal plumbing. Check the local operator, building system and exact tap rather than relying on fear or a blanket national claim.
09What warranty does HydroView+ have in Malaysia?
+
HydroView+ includes a 12-month standard warranty plus a 12-month extended warranty for manufacturing defects under normal household use. Filters, consumables, wear, misuse, improper installation, unauthorised repair and third-party parts are excluded; inspection and approval apply.
